AnalytEx

AnalytEx is Ex-Online’s built-in analytics. It provides dashboards and charts for defects and inspection data.

It visualizes that data so you can see trends, status, and comparisons across sites and projects.

Data refresh

Dashboard data is refreshed periodically (about every two hours). If numbers look stale, check again after the next refresh cycle.

Accessing AnalytEx

1. Open a project in the Tag Browser.

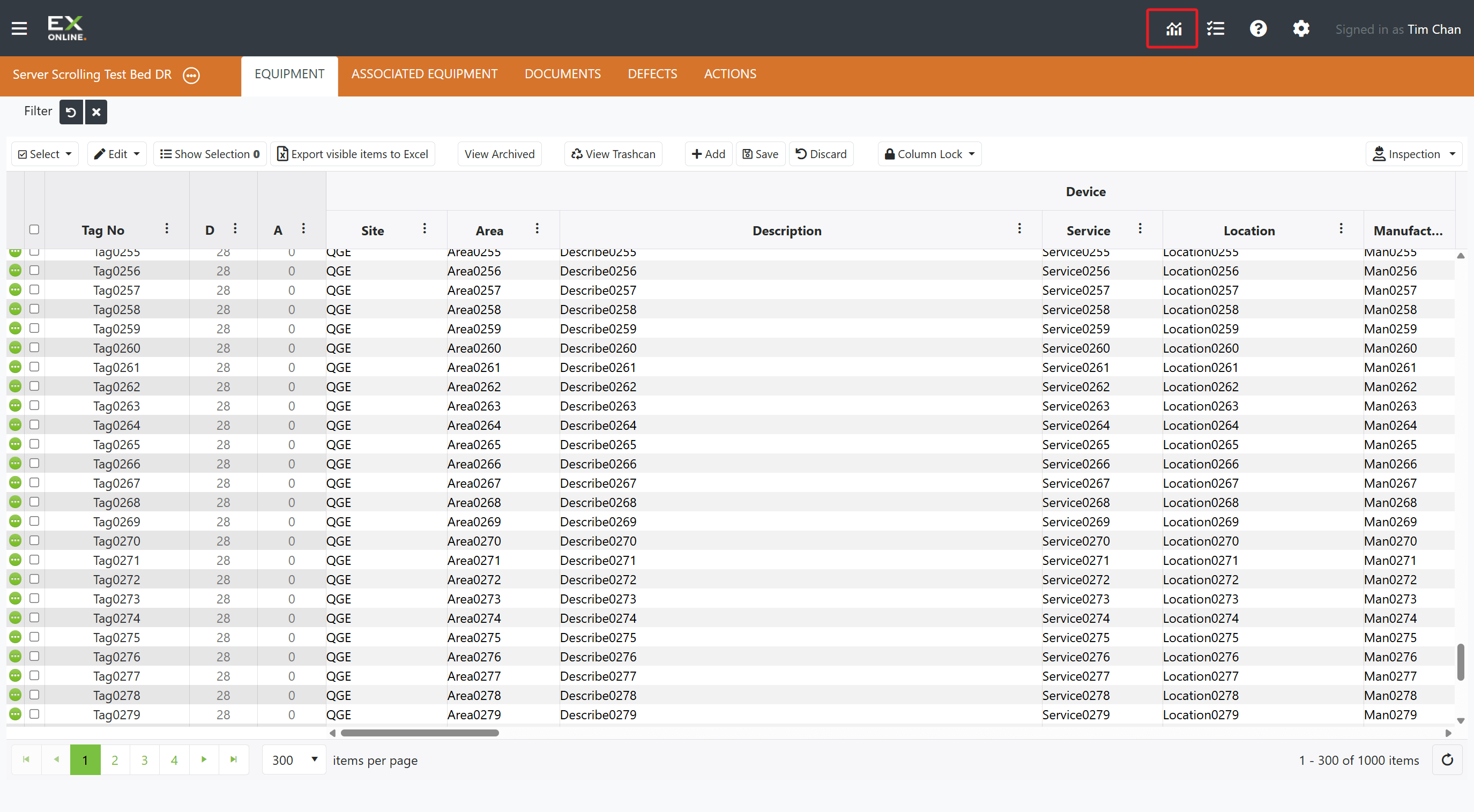

2. Click the AnalytEx icon in the toolbar (top right).

   (AnalytEx icon in the toolbar)

3. The AnalytEx home screen opens.

Dashboard Overview

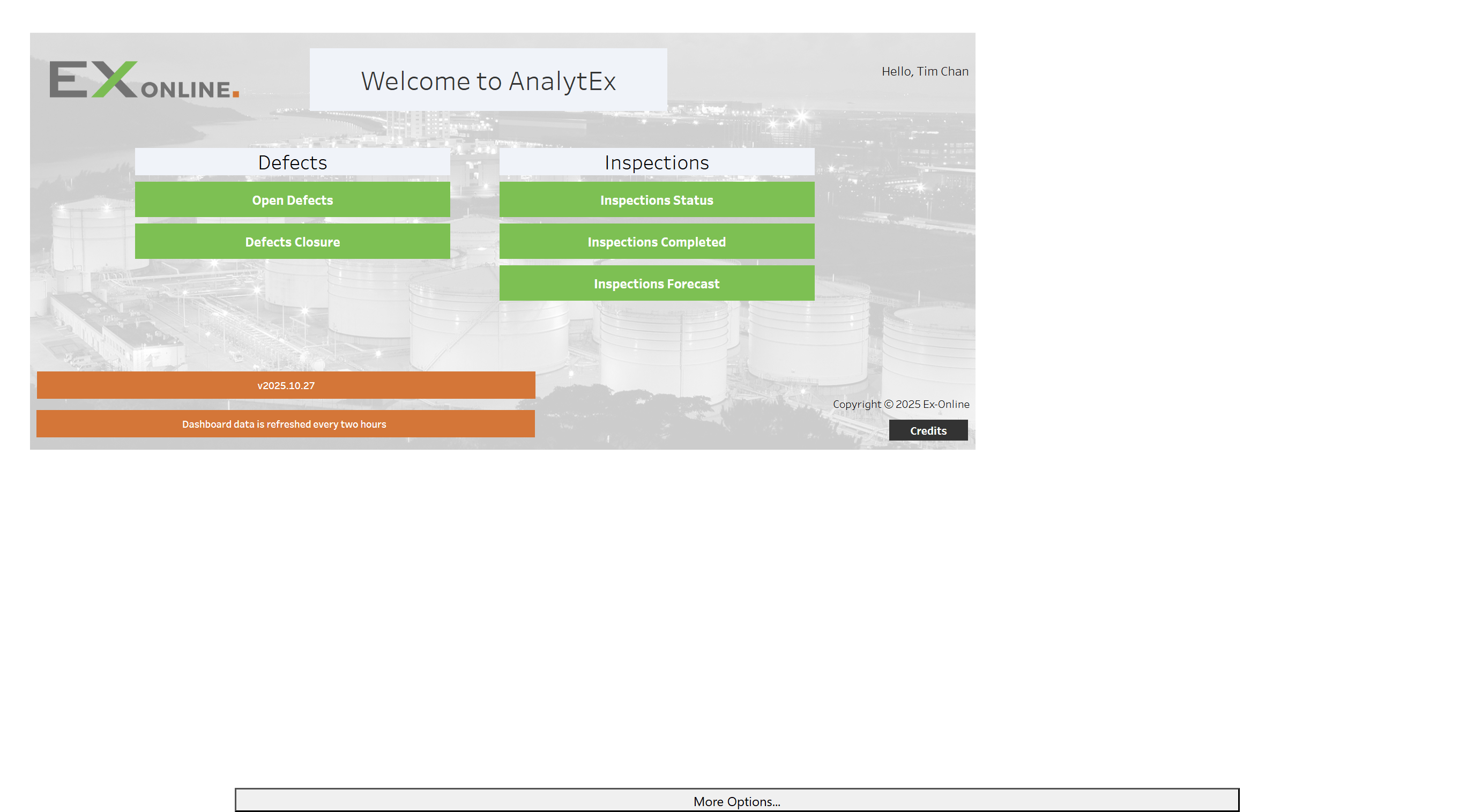

The AnalytEx home screen provides quick access to several analytics views:

(AnalytEx home screen)

Dashboard	Description
Open Defects	Summary of existing open defects across projects
Defects Closure	History of defects closed by project and year
Inspections Status	Overview of inspection timing and status by project
Inspections Completed	History of inspection uploads to Ex-Online
Inspections Forecast	Stacked area view of inspection due dates over time

From the home screen, click a dashboard to open it in the embedded analytics view. Click the Home button (top right) to return to the AnalytEx home screen.

Key Features

Each dashboard lets you filter what you see, interact with charts, and use a toolbar at the bottom for actions such as undo and export. The subsections below explain each part.

Filtering

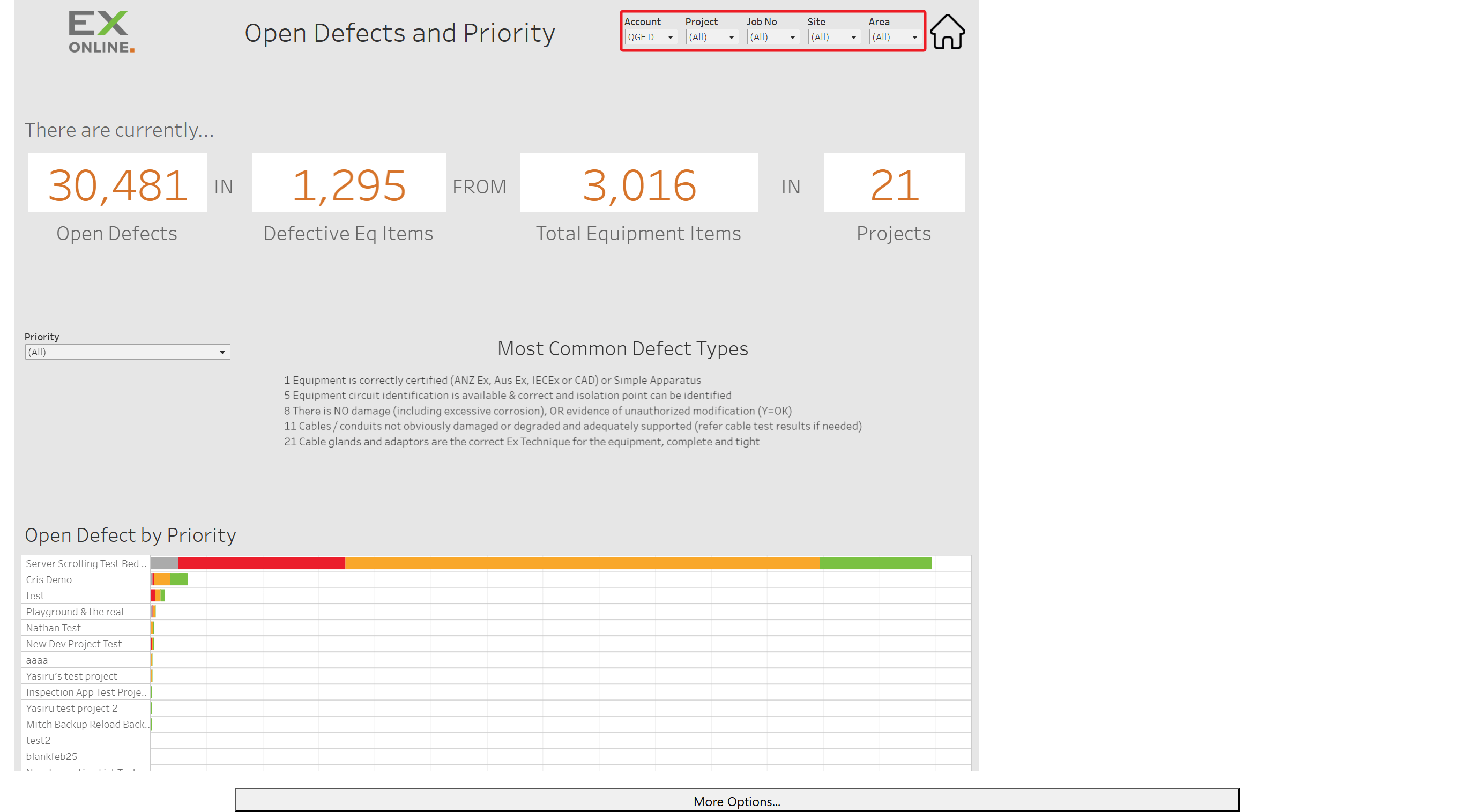

Use the filter row at the top of each dashboard to narrow what you see.

Filters usually include Account, Project, Job Number, Site, and Area.

(Open Defects filter row)

Use the drop-downs to change filters; the charts update automatically. It is often easiest to start broad, then narrow after you have scanned the full view.

Filter settings are remembered per dashboard—when you switch to another dashboard and come back, each one still has the filters you last set there.

Interactive Charts

Charts respond to the pointer and clicks. Aim at the marks on the chart (bar segments, points, and so on)—not only the title or axis labels.

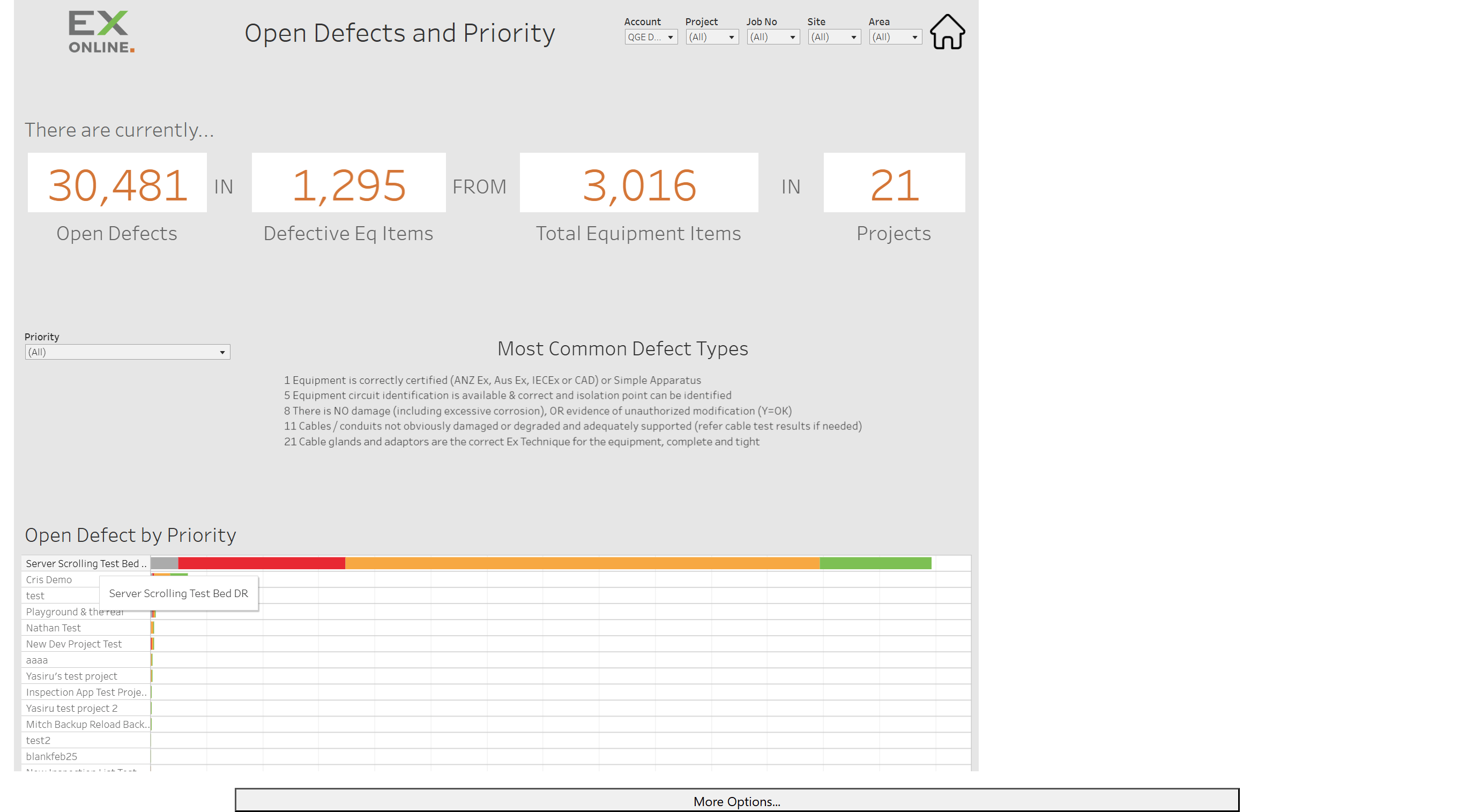

• Hover over a mark to see counts, details, and shortcuts such as Keep only and Exclude.

(Hover tooltip on a bar segment)

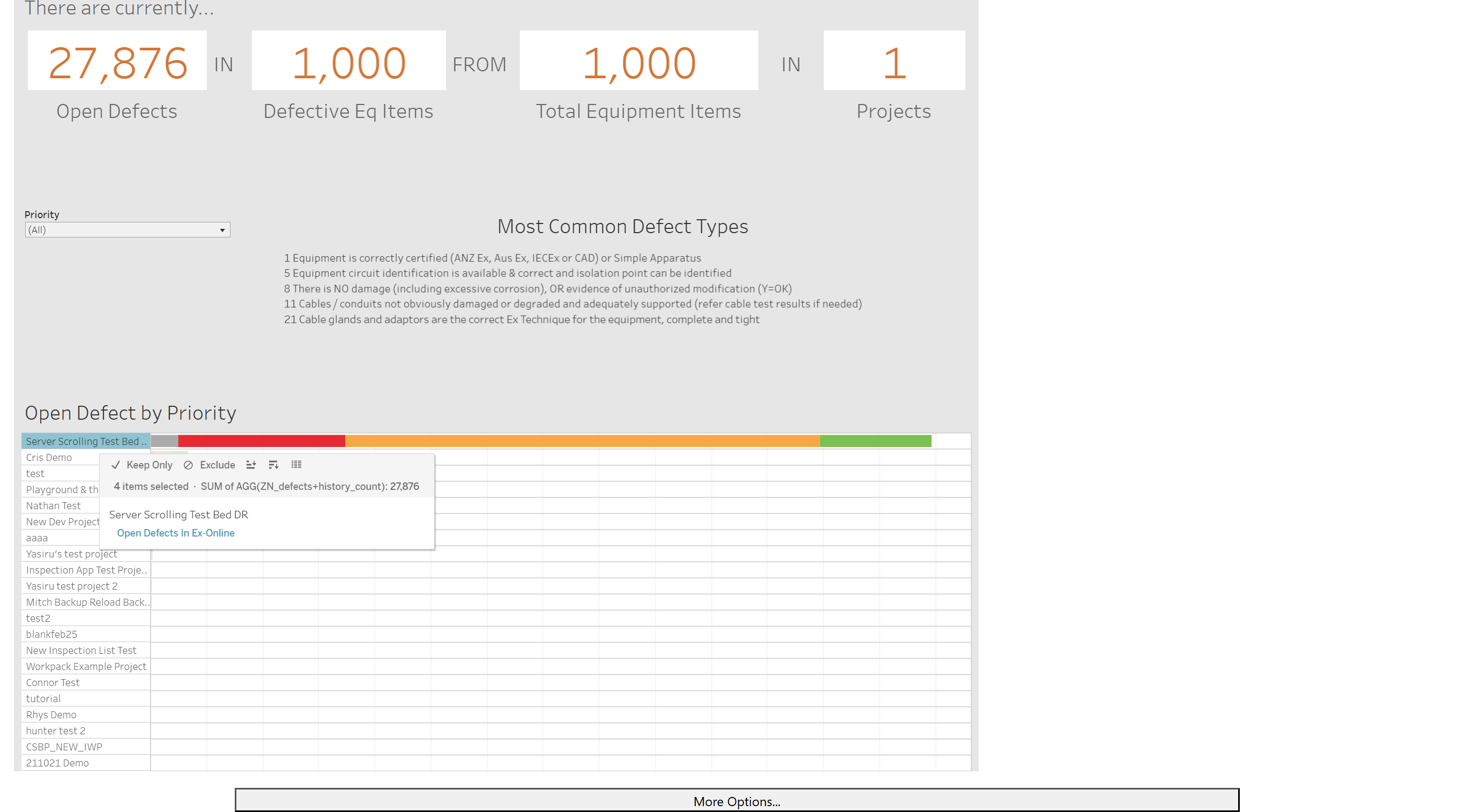

• Click a mark to open the full menu. You can:
  • Navigate to related items in Ex-Online (when the dashboard provides a link)
  • Exclude the selection from the view
  • Keep only the selection (narrows the charts to that data)

(Click menu with Keep Only, Exclude, and link to Ex-Online)

Toolbar and export

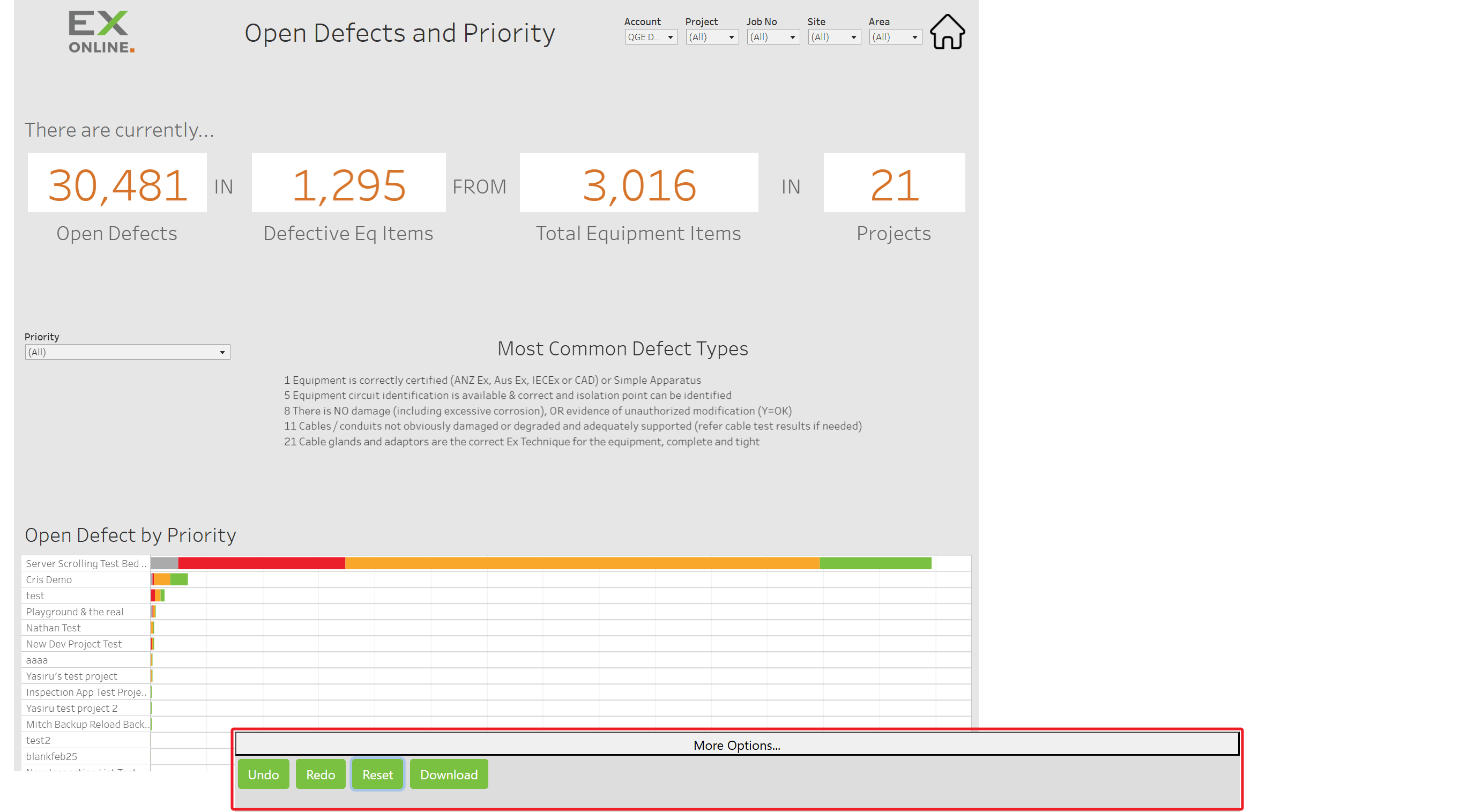

At the bottom of the view, hover the More Options… bar (outlined in the screenshot). That reveals Undo, Redo, Reset, Download, and any extra actions for this view.

(More Options toolbar with Undo, Redo, Reset, Download)

Control	Description
Undo	Undo the last change to filters or the view
Redo	Redo an action you undid
Reset	Return this dashboard to its default state
Download	Save the current view or data (formats can include image, PDF, PowerPoint, or Excel)

Related Topics

• Defect dashboards — Open Defects and Defects Closure in detail
• Inspection dashboards — Inspections Status, Completed, and Forecast in detail
